The small swing gate adopts our company's exterior cabinet, which is novel, beautiful and uniquely shaped. It is easy to use and conducive to overall maintenance. The door body is connected and driven with the main gear of the movement through an inclined plane. When the closing resistance is greater than the set value, the door body can open automatically. In case of power failure, the door body will also open automatically without a battery. The intelligent gate is an intelligent channel management device for non-contact channel detection and control, adopting the company's latest patented electromechanical integration control and drive technology. Multiple groups of sensors control the entrance and exit through the glass door wings. Authorized legal personnel can pass smoothly without any obstruction without being inspected individually, while unauthorized access is denied. It provides high-quality entrance and exit control to ensure the safety of children in the park.

    This gate is suitable for parks such as kindergartens, primary schools, office buildings, hotels, etc. The service life and safety are the primary considerations for the product. The entire system operates with a stepless positioning device, and the operation process is controlled by sensors without mechanical collision, thus achieving stable operation, low noise and less wear. Based on the summary of actual usage data from numerous projects, the actual service life of the equipment is more than 5 million times. High-priced components such as magnet adsorption, belt transmission, and servo mobile positioning drivers are all humanized designs to avoid pinching children.

Technical Specifications

Model: JT-BT185-1/2

Dimensions (mm) and Weight (kg)

Length: 1200 mm

Width: 200 mm

Height: 980 mm

Weight: Approximately 30 KG

Main Materials

Cabinet: 304 stainless steel

Surface Treatment: Brushed / Polished / Electroplated / Painted

Movement: 45# steel with colored zinc electroplating on the surface; Mechanical movement: [Based on German technology] Non-destructive movement

Infrared: Stainless steel anti-glare metal sensor

Door Body: Organic glass (color optional)

Movement Performance

Transmission Mode: Servo mobile positioning driver

Safety Mode: Unobstructed passage after power failure

Power-assisted Drive: Brushless motor

Opening Method: 180-degree split opening

Door Opening/Closing Speed: 0.1-999 seconds (user-adjustable)

Passage Width: 550mm-750mm;

Door Body Stroke: 300mm-400mm (single door body)

Equipment Noise: ≤30db when opening/closing the door

Passage Speed: 35 persons/minute in normally closed mode; 60 persons/minute in normally open mode

Control Input/

Functional Features

• Multiple sets of infrared sensors monitor channel status in real-time, with precise logic judgment for unobstructed authorized passage

• Four-fold protection for pedestrians in the channel: mechanical device protection, door position

detection, current detection, and channel sensor protection to prevent clamping

• The entire system operates with a stepless positioning device, and the operation process is controlled by sensors without mechanical impact

• CNC machining process, fine surface treatment, and strong corrosion resistance

• Automatic reset function: if a pedestrian does not pass within the specified time after legal verification, the system will automatically cancel the user's passage permission for this time.

• Convenient and easy to use, facilitating the passage of personal items such as packages and luggage

• Anti-tailgating function: protection level 2

• Passage mode: one-way, two-way (optional), adjustable running speed; multiple working modes available for selection

• Light prompt: direction of passage indication

• Lightning and leakage protection function

• Protection functions: anti-pinch, anti-collision, anti-blocking, anti-stall, anti-overvoltage and overcurrent of electrical appliances

• Prevention of illegal operations and alarm function

• Standard external electrical interface with photoelectric safety isolation, which can be connected with various control devices for easy system integration

• Remote control and setting function

Electrical and Environmental

• Voltage: 110V to 240V AC (wide range of power input voltage)

• Frequency: single-phase 50Hz to 60Hz

• Working voltage: DC24V

• Current: static 300mA; dynamic 4A (maximum working current)

• Operating temperature: -20 to 70°C (-4 to 158°F)

• Storage temperature: -40 to 80°C (-40 to 176°F)

• Relative humidity: 5% to 95% in non-condensing state

Functions

2.2 Expandable functions:

• Two-way automatic counting function, which can "add" in the forward direction and "subtract" in the reverse direction, automatically counting the number of people present (customized).

• Voice prompt function: "Welcome! Have a nice trip! Please swipe your card!" etc. (customized);

• Selection of telescopic arm material and original color.

Installation Requirements

Single-phase 3A 110V to 220V AC power supply, grounded

Connection lines to control equipment

Possible civil engineering work and fixing work

Note:

Security Level 1: Basic anti-tailgating identification system, the equipment length is relatively short, achieving the basic level of two-way single-person passage identification;

Security Level 2: Anti-tailgating identification system with optimal length and structure, achieving a higher level of two-way single-person passage identification, capable of identifying children and strollers;

Security Level 3: This equipment uses mechanical devices and sensors installed on the machinery for two-way passage identification and tailgating control.

Product Application Examples：

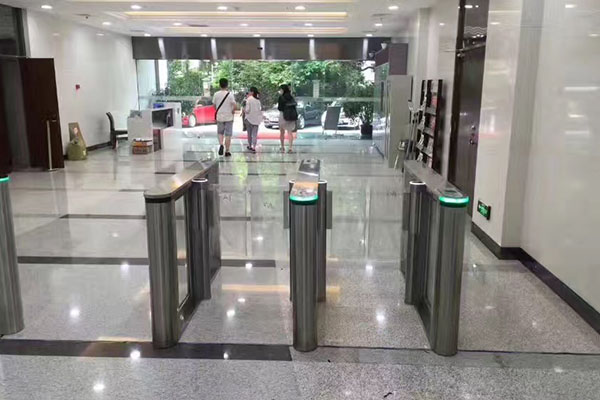

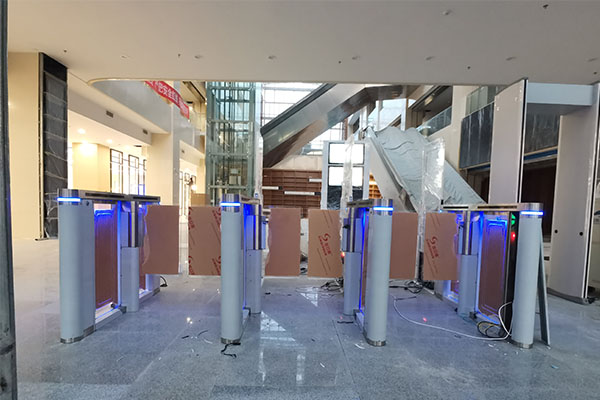

This image presents the actual application of our deluxe compact swing gates for a building project in China.

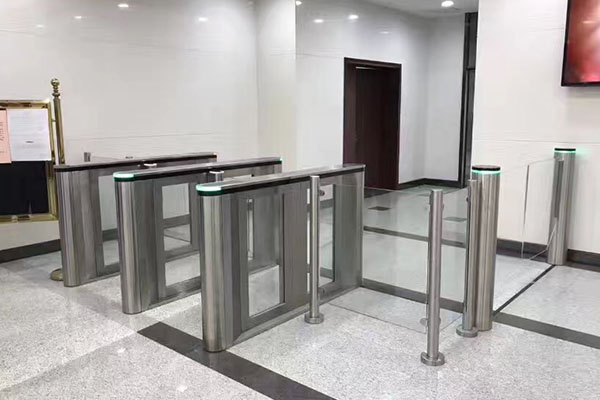

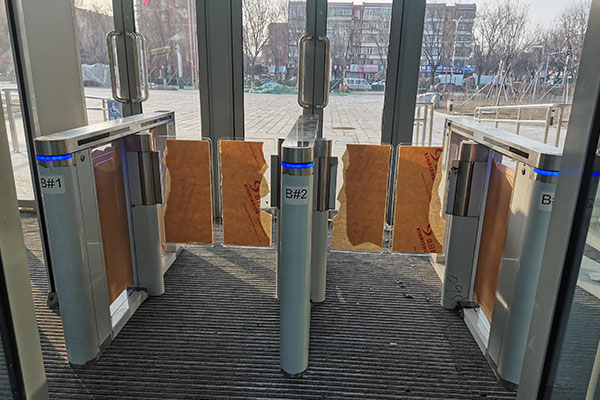

This image shows the on-site installation of our deluxe compact swing barriers at a bank branch in China.
