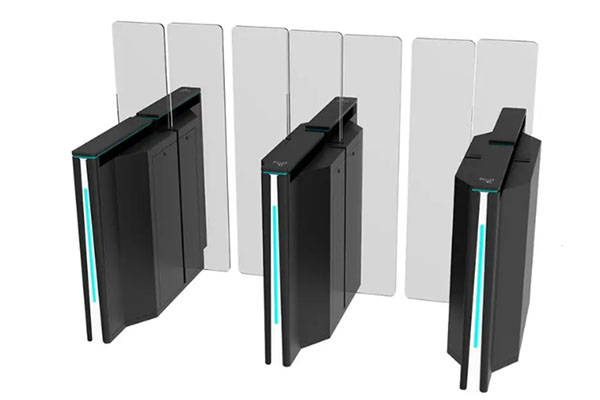

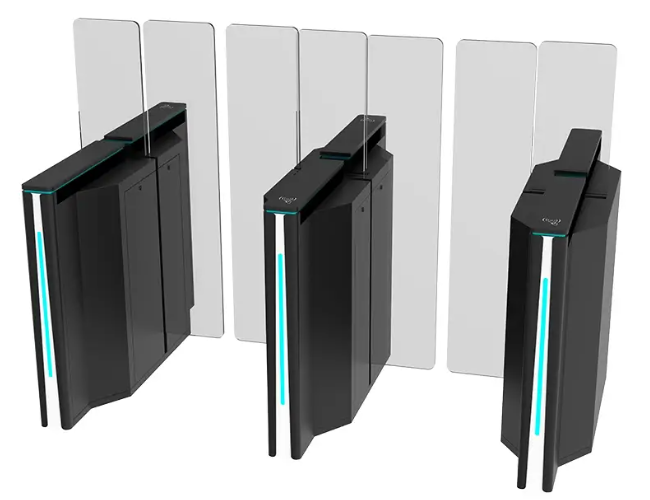

JT609 Prismatic Aurora Sliding Turnstile

JT609 Prismatic Aurora Sliding Turnstile

Elevate your building’s security and aesthetics with the AT609 Prismatic Aurora Series High-Speed Sliding Turnstile. Engineered for modern high-traffic environments, this advanced servo sliding gate delivers ultra-quiet operation and an impressive recognition speed of $\leq 0.3s$. Crafted from durable 304/316 stainless steel with a sleek prismatic design, our sliding turnstile offers a perfect blend of high-end aesthetics and long-lasting performance for corporate offices, transit hubs, and commercial complexes.
1.Product Dimensions:1400*350*1000mm(4.59*1.15*3.28ft)as standard, with full customization available to suit site-specific layouts.
2.Channel Width: Adjustable from 600 mm (1.97 ft) to 900 mm (2.95 ft), with custom widths offered to accommodate different user needs, including wheelchair or large-item access.
3.Enclosure Construction: Standard build combines iron baking paint with durable SUS304 stainless steel. SUS316 stainless steel is available as an upgrade for enhanced corrosion resistance in coastal or high-humidity environments.
4.Swing Arm Material: Features clear acrylic as standard, with optional upgrades to tempered glass, plexiglass, or stainless steel for varying security and aesthetic requirements.
5.Surface Finish: Multiple customizable options including brushed, polished, electroplated, and baking paint finishes, to match any interior or exterior design scheme.
6.Traffic Direction: Configurable for one-way or two-way passage, allowing flexible management of pedestrian flow based on your facility’s needs.
7.Drive Mechanism: Equipped with a high-precision servo motor drive, ensuring ultra-silent, smooth, and reliable operation even under continuous use.
8.Passage Throughput: Capable of handling 30–40 persons per minute under normal operating conditions, ideal for high-traffic areas such as office buildings, transit stations, and commercial complexes.

Consult immediately

JINBO Turnstile carries a 2 years warranty and durable maintenance and repair support.

JT609 Sliding Turnstile Functional features

The JT609 Prismatic Aurora Series sliding turnstile redefines high-end access control with its advanced servo drive architecture. Built to meet the demands of modern high-traffic environments, this servo-powered system merges ultra-fast response, whisper-quiet operation, and adaptive safety logic, delivering a seamless blend of premium aesthetics and uncompromising performance.

High-Speed Precision Servo Drive: 0.3s Lightning-Fast Response

At the core of the AT609 lies a high-precision servo motor engineered for rapid, accurate operation. With a recognition-to-opening response time of ≤0.3 seconds, it handles peak-hour foot traffic with unmatched efficiency, minimizing bottlenecks in busy corporate lobbies and transit hubs. The full closed-loop control ensures the door panel moves to its exact position every time, eliminating the lag and positioning errors common in traditional motor-driven turnstiles.

Ultra-Quiet Motion Control: Designed for Discreet Operation

Unlike conventional motors that produce jarring starts and stops, the servo drive uses an optimized S-curve motion profile. This enables smooth, jitter-free acceleration and deceleration, resulting in near-silent operation. Even at full speed, the turnstile operates at noise levels low enough for premium office spaces, hotels, and quiet commercial environments, preserving the building’s sophisticated atmosphere.

Adaptive Torque Sensing & Multi-Layer Safety

The servo drive continuously monitors motor torque with microsecond-level precision, creating a dynamic safety shield. If an obstruction—whether a pedestrian, luggage, or unexpected object—is detected during operation, the system triggers an immediate, controlled stop or soft-reverse action. Combined with infrared light curtain detection, this dual-layer protection eliminates pinching risks, ensuring safety for users of all ages and abilities.

Customizable Motion Tuning for Any Environment

The AT609 servo system offers software-configurable parameters to match your facility’s unique needs:

Adjust opening/closing speeds independently to balance high throughput and safety.
Fine-tune response sensitivity to adapt to fast-moving commuters or slower-paced environments.
Modify door travel limits to accommodate standard lanes or wide-access paths for wheelchairs and large items.

No mechanical adjustments are required—all settings are updated digitally for quick, on-site customization.

Durability Engineered for Continuous Use

Designed for long-term reliability, the servo drive significantly reduces mechanical stress on moving parts. The smooth motion profile eliminates the repeated shocks that wear out gears and bearings in traditional turnstiles. With an MCBF (Mean Cycles Between Failures) rating exceeding 10 million cycles, the AT609 delivers consistent performance year after year, even in high-traffic commercial complexes.

Fail-Safe Operation & Compliance

The servo system integrates seamlessly with emergency protocols. In the event of a power outage, the drive automatically unlocks the gates, allowing manual push-through for unobstructed egress. This ensures full compliance with fire safety regulations, providing peace of mind for building operators and occupants alike.

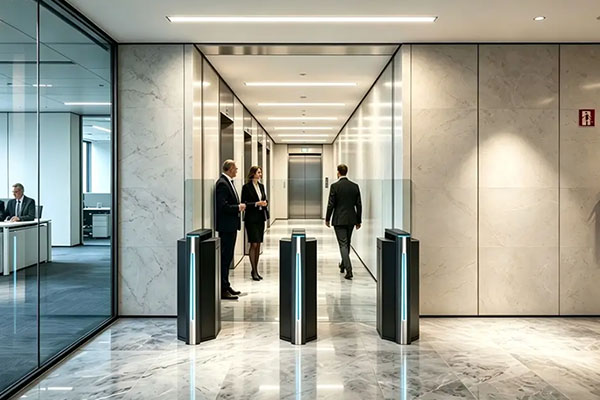

JT609 Sliding Turnstile Scene rendering

We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.

JT609 Sliding Turnstile Scene rendering

Speed Gate Turnstile Customization

We offer OEM and ODM services. We have an experienced design and technical team capable of providing in-depth customization to meet any of your needs. We will provide a range of materials as soon as possible, such as 3D renderings and dimensional drawings. In addition, we also offer biometric devices such as IC/ID card readers, fingerprint scanners, QR code scanners, and facial recognition cameras.

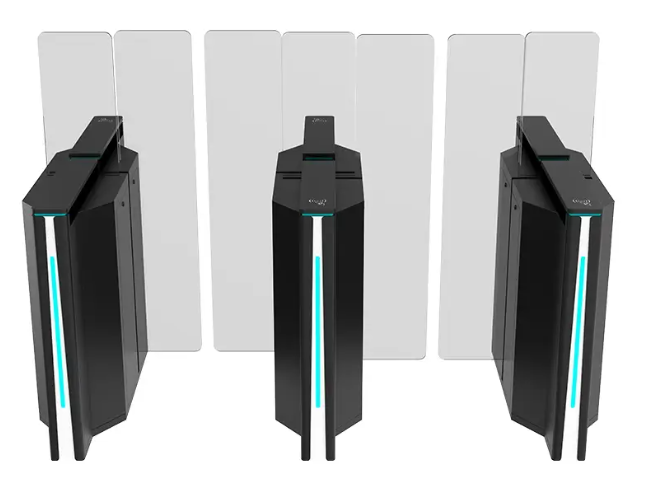

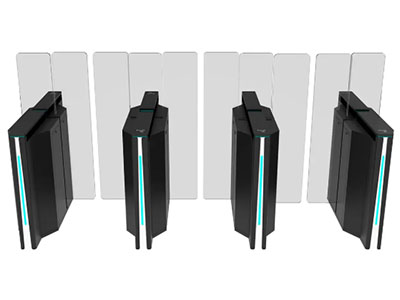

Optional：Number of turnstile channels

The diagram shows a three-channel system consisting of two single-core and two dual-core sliding turntiles. The number of turntiles can be increased if more channels are needed.

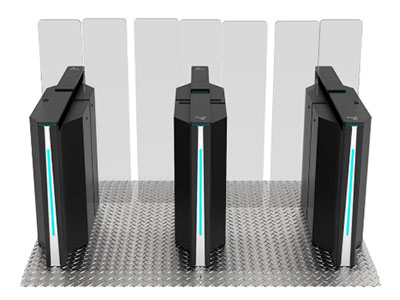

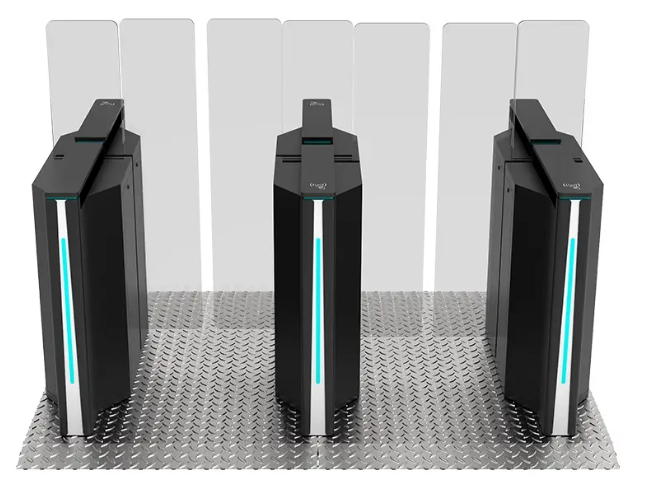

Optional： guardrails and base

Say goodbye to fixed locations. This product can be equipped with dedicated guardrails and bases, and casters are optional. Without casters, it can be fixed in one place for clearer pedestrian flow guidance; with casters, the installation location can be moved as needed, achieving flexible storage and convenient space management.

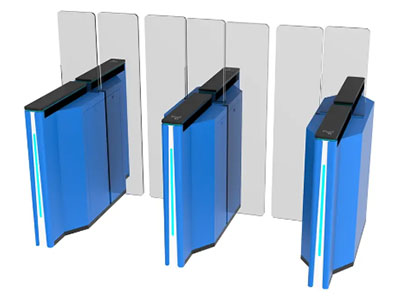

Optional：Turnstiles color

In addition to the natural silver-white of stainless steel, we also offer a variety of coating colors and processing techniques, such as baking paint and electroplating, to help you create unique product aesthetic solutions to match your environment.

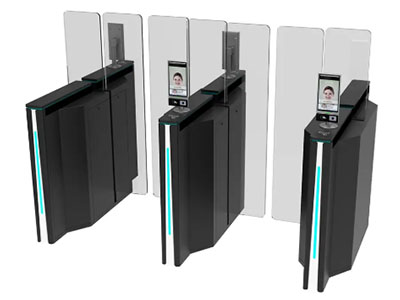

Optional： your own exclusive pass

Our rotary turnstiles support multiple authentication methods (such as facial recognition, fingerprint recognition, card swiping, and QR code scanning) and can be flexibly configured according to security levels to meet the needs of different scenarios. Of course, you can also use your own identification device; please tell us your device size, and we will integrate it into the turnstile.

Diverse Methods of Passage Compatibility.

Our turnstiles are compatible with different access methods. If you already have your own access system, tell us your device dimensions and we can make it compatible with this device.

QR Code

Optional QR Code: We offer QR code module integration; personnel can enter by scanning a QR code, or visitors can enter using a temporary QR code.

Touch Button

Optional Touch Button:No need to take out a card; simply touch the sensor with your fingertip and the door will open gracefully, allowing you to easily enjoy the experience of entering and exiting.

Card

Optional Card:Each card is a unique security key. Simply swipe the card to pass through, achieving accurate identity verification and authorization, ensuring the security of every entrance.

Face Reader

Optional Face Reader:Free your hands and verify in seconds. Accurately identify authorized personnel, significantly improve access efficiency, and facilitate intelligent management.

Remote Control

Optional Remote Control:Adding a remote control system enables long-distance operation; one-button door opening improves pedestrian traffic efficiency and provides ultimate convenience.

Fingerprint Scanner

Optional Fingerprint Scanner:Utilizing mature fingerprint recognition technology, we provide you with reliable access control that combines efficiency and security.

1.Q: The JT609 has a distinctive prismatic design. Can the LED light strips be customized to match our building’s interior lighting scheme or brand colors?

A: Yes, absolutely. The LED indicator strips on the JT609 are fully customizable to align with your brand identity or building’s design scheme. We offer a wide range of color options, including static single colors, RGB gradient effects, and brightness adjustments. This allows you to match the lighting to your corporate colors, interior accents, or specific wayfinding requirements, creating a cohesive and premium aesthetic.

2.Q: How does the high-speed 0.3s response time affect safety? Does the turnstile still provide reliable anti-pinch protection even at its fastest operating speed?

A: The high-speed response is engineered with safety as a top priority. The 0.3s opening speed is only achieved under ideal conditions with a verified access signal. The turnstile’s servo motor continuously monitors torque, and paired with infrared light curtain sensors, it provides instant anti-pinch protection even at maximum speed. If an obstruction is detected, the system triggers a controlled stop or soft reverse in milliseconds, preventing injury or damage.

3.Q: For projects requiring a cohesive aesthetic, can we match the enclosure finish (brushed, polished, painted) to other access control hardware like readers or door handles?

A: Yes, we offer multiple customizable enclosure finishes specifically to support cohesive building aesthetics. The AT609 is available in brushed, polished, electroplated, and baking paint finishes. We can also provide custom finishes to match your existing access control readers, door handles, or architectural hardware, ensuring a unified, high-end look throughout your facility.

4.Q: In a high-traffic environment like a transit hub, how consistent is the throughput rate of 30–40 people per minute over extended periods?

A: The 30–40 people per minute throughput rate is a sustained performance metric, not just a peak value. Powered by the high-precision servo motor, the AT609 maintains this efficiency even during continuous, high-volume operation. With an MCBF (Mean Cycles Between Failures) rating exceeding 10 million cycles, it is designed for long-term reliability in demanding environments like transit hubs and commercial complexes, with no significant drop in speed or performance over time.

5.Q: What options are available for the swing arm material (acrylic, glass, etc.), and how do they affect security and maintenance in public spaces?

A: The JT609 offers several swing arm material options, each suited to different needs:

Standard Clear Acrylic: Lightweight, impact-resistant, and low-maintenance, ideal for general office use.
Tempered Glass / Plexiglass: Offers enhanced rigidity and a premium, transparent look, suitable for high-security areas.
Stainless Steel: Provides maximum durability and anti-climb protection, recommended for high-traffic or public-facing locations.
All materials are easy to clean and maintain, with tempered glass and stainless steel offering superior resistance to scratches and vandalism in busy environments.
