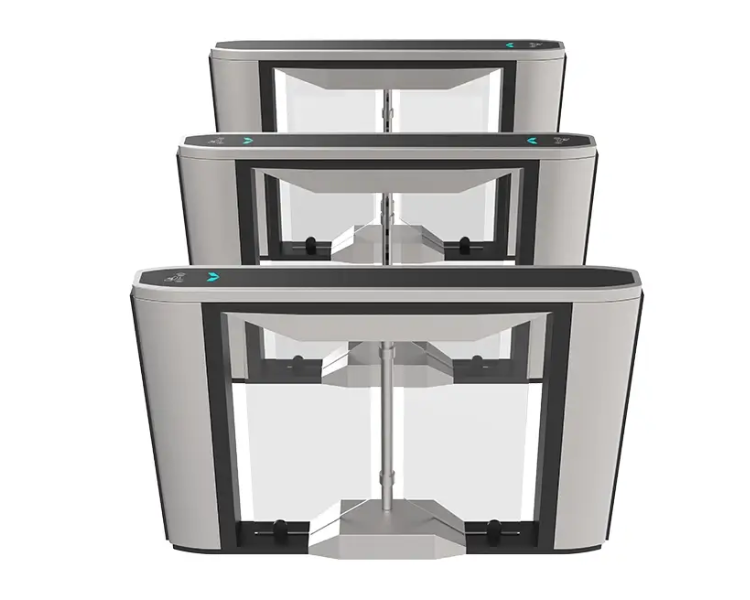

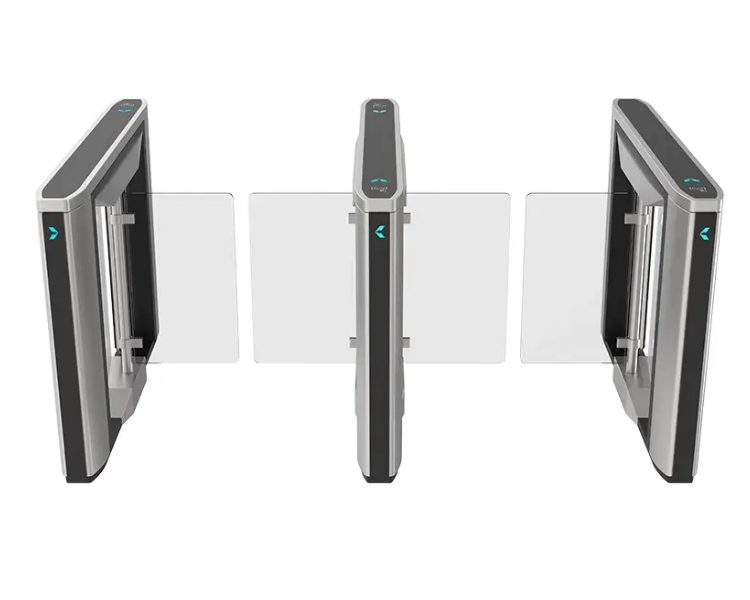

Elegant Acrylic Swing Gate Turnstile for High-End Entrances
The JT214 is designed for buildings that require secure access control without compromising interior design. Its premium acrylic swing panels provide a clean, transparent, and modern appearance, helping the entrance area feel more open and welcoming. Compared with heavy barrier structures, the acrylic panel design creates a lighter visual effect while still providing controlled pedestrian passage.
The cabinet combines iron baking paint and 304 stainless steel as the standard structure, offering both durability and a refined finish. For environments that require higher corrosion resistance or stronger material performance, 316 stainless steel can be customized.
Smart Speed Gate Turnstile with Smooth Pedestrian Flow
The JT214 uses a DC brushless motor to achieve fast, stable, and quiet opening and closing. After receiving a valid access signal, the swing panels open smoothly, allowing authorized users to pass quickly. Once the user completes passage, the gate closes automatically to prevent unauthorized entry.
With a passage rate of 30–40 people per minute, this acrylic speed gate turnstile is suitable for locations with frequent pedestrian traffic, such as company lobbies, office towers, commercial complexes, financial centers, hotels, libraries, and smart campuses.
Flexible Passage Width for Different Access Needs
The standard channel width ranges from 600 mm to 800 mm, supporting daily pedestrian passage, visitor access, luggage movement, and wider entrance requirements. For specific project layouts, AIPADA can customize the passage width and lane configuration according to site dimensions, traffic flow, and accessibility requirements.
Premium Appearance with Custom Surface Finishes
The JT214 supports multiple surface treatment options, including brushed finish, polished finish, electroplating finish, and baking paint finish. Customers can customize the color, logo, and exterior appearance to match the building’s decoration style, brand image, or architectural design concept.
What is the JT214 Premium Acrylic Speed Gate Turnstile?
The JT214 is a motorized swing gate turnstile designed for pedestrian access control. It features premium acrylic swing panels, a slim cabinet, DC brushless motor operation, LED indicators, infrared detection, and multiple access control options.
Where can the JT214 Acrylic Speed Gate Turnstile be installed?
It can be installed in office lobbies, company entrances, hotels, campuses, hospitals, factories, commercial buildings, gyms, clubs, exhibitions, residential communities, and public facilities.
What is the standard size of the JT214 Speed Gate Turnstile?
The standard product size is 1470 × 180 × 970 mm, equal to approximately 4.82 × 0.59 × 3.18 ft. Custom dimensions are also available.
What is the passage width of this swing gate turnstile?
The standard passage width is 600 mm to 800 mm, equal to approximately 1.97 ft to 2.95 ft. The width can be customized according to project requirements.
What material is used for the JT214 swing arm?
The standard swing arm material is acrylic. Optional materials include tempered glass, plexiglass, and stainless steel.
Can the JT214 support face recognition access?
Yes. The JT214 can integrate with face recognition devices for fast, contactless, and intelligent access control.
Does this speed gate turnstile support QR code access?
Yes. QR code scanner integration is available for visitor management, temporary access, event ticketing, appointment entry, and mobile authorization.
What is the passage speed of the JT214?
The JT214 supports a passage speed of approximately 30–40 people per minute, depending on the access method and site traffic conditions.
What power supply does the JT214 use?
The power supply input is AC100V–240V, and the output is DC24V / DC12V.
Can the color and logo be customized?
Yes. AIPADA supports custom colors, logo branding, surface treatment, cabinet finish, and appearance design.
Is the JT214 suitable for wholesalers and bulk buyers?
Yes. The JT214 is suitable for wholesalers, distributors, contractors, system integrators, and bulk purchasers. AIPADA can provide wholesale support, OEM/ODM customization, project drawings, and technical assistance.
What safety functions does the JT214 include?
The JT214 includes anti-tailgating, anti-intrusion, reverse entry prevention, collision protection, emergency opening, automatic reset, lightning protection, leakage protection, and infrared sensor alarm functions.

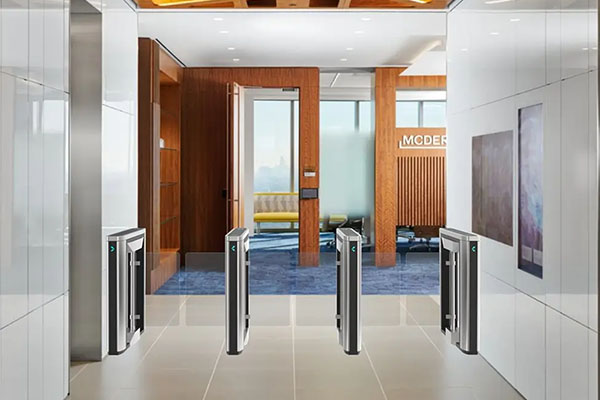

Swing Turnstile Scene rendering
We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.
We offer OEM and ODM services. We have an experienced design and technical team capable of providing in-depth customization to meet any of your needs. We will provide a range of materials as soon as possible, such as 3D renderings and dimensional drawings. In addition, we also offer biometric devices such as IC/ID card readers, fingerprint scanners, QR code scanners, and facial recognition cameras.

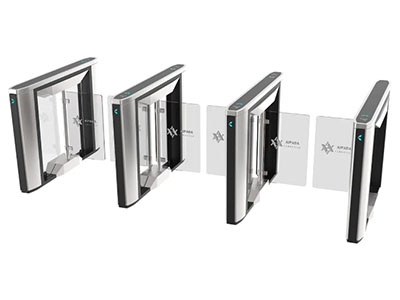

Optional：Number of turnstile channels

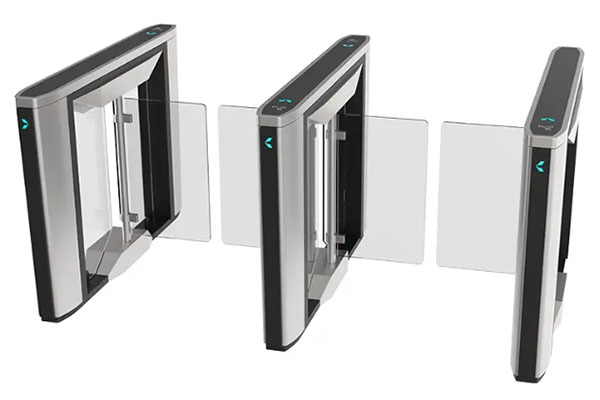

The diagram shows a dual-channel system consisting of two single-core and two double-core wing and rotary gates. If more channels are needed, the number of rotary gates can be increased.

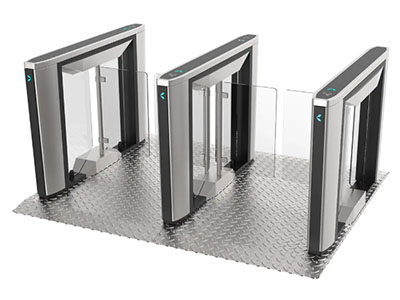

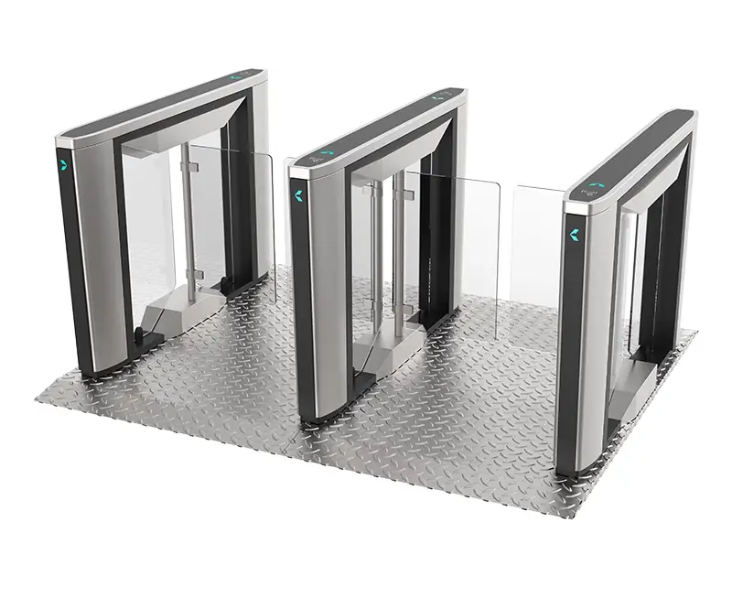

Optional： guardrails and base
Say goodbye to fixed locations. This product can be equipped with dedicated guardrails and bases, and casters are optional. Without casters, it can be fixed in one place for clearer pedestrian flow guidance; with casters, the installation location can be moved as needed, achieving flexible storage and convenient space management.

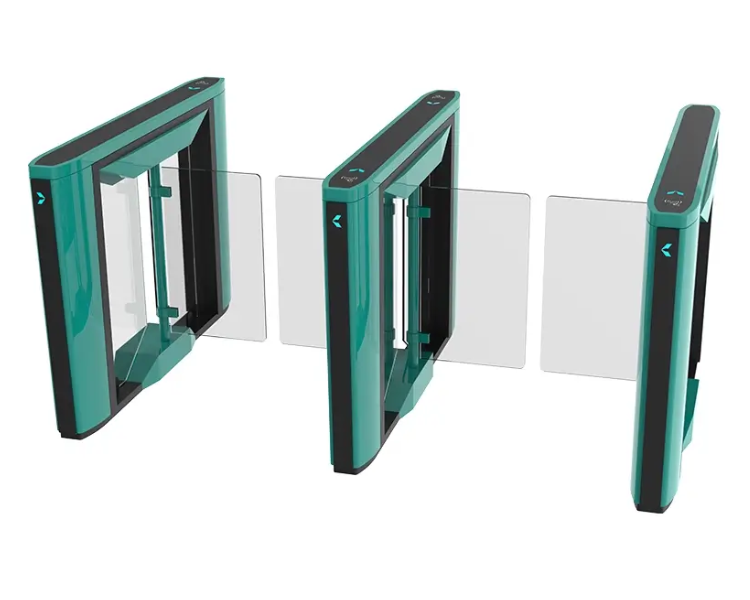

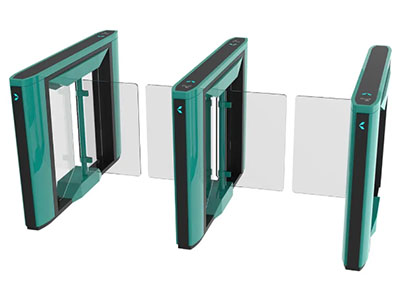

Optional：Turnstiles color
In addition to the natural silver-white of stainless steel, we also offer a variety of coating colors and processing techniques, such as baking paint and electroplating, to help you create unique product aesthetic solutions to match your environment.

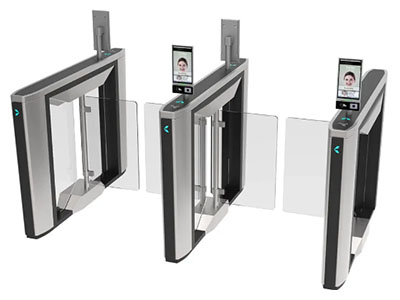

Optional： your own exclusive pass
Our rotary turnstiles support multiple authentication methods (such as facial recognition, fingerprint recognition, card swiping, and QR code scanning) and can be flexibly configured according to security levels to meet the needs of different scenarios. Of course, you can also use your own identification device; please tell us your device size, and we will integrate it into the turnstile.
Our turnstiles are compatible with different access methods. If you already have your own access system, tell us your device dimensions and we can make it compatible with this device.
Optional QR Code: We offer QR code module integration; personnel can enter by scanning a QR code, or visitors can enter using a temporary QR code.
Optional Touch Button:No need to take out a card; simply touch the sensor with your fingertip and the door will open gracefully, allowing you to easily enjoy the experience of entering and exiting.
Optional Card:Each card is a unique security key. Simply swipe the card to pass through, achieving accurate identity verification and authorization, ensuring the security of every entrance.
Optional Face Reader:Free your hands and verify in seconds. Accurately identify authorized personnel, significantly improve access efficiency, and facilitate intelligent management.
Optional Remote Control:Adding a remote control system enables long-distance operation; one-button door opening improves pedestrian traffic efficiency and provides ultimate convenience.
Optional Fingerprint Scanner:Utilizing mature fingerprint recognition technology, we provide you with reliable access control that combines efficiency and security.

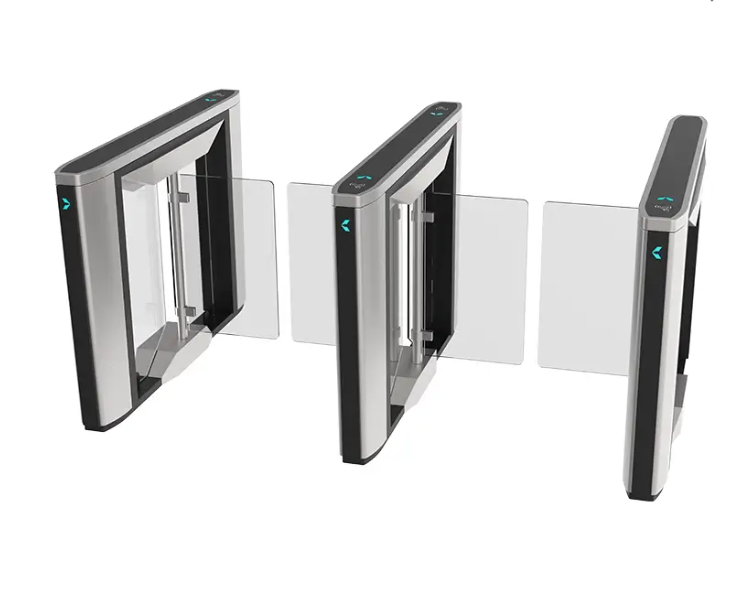

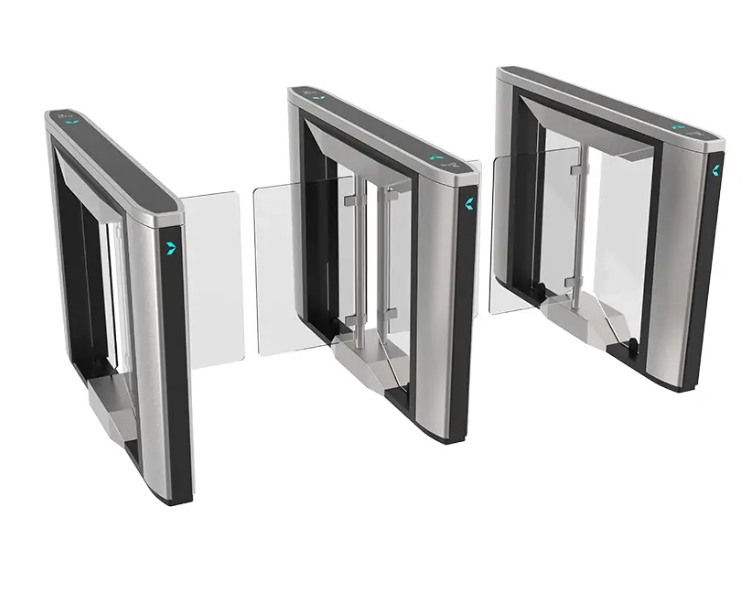

Premium Acrylic Speed Gate Turnstile
Elevate your entrance experience with the Speed Gate Turnstile. More than just a security barrier, it represents a seamless blend of sophisticated design and intelligent functionality, now enhanced with premium acrylic panels.
Crafted for modern corporate aesthetics, this solution features a striking two-tone finish paired with high-clarity acrylic panels that deliver exceptional light transmission and a sleek, unobstructed look. As a leading swing gate turnstile wholesaler, we ensure its smooth, curved silhouette eliminates sharp edges, creating a safe yet luxurious ambiance that perfectly suits office lobbies, business centers, and high-end commercial complexes. The acrylic panels offer durable, scratch-resistant performance, balancing practicality with refined transparency.
Beneath its elegant exterior lies robust functionality. Equipped with advanced infrared sensors and a high-torque motor, it ensures ultra-fast, smooth pedestrian access. Seamlessly integrating with existing access systems, it provides secure management while maintaining an open, welcoming atmosphere—redefining modern access control with both style and substance.
